Gretag Macbeth ColorChecker Chart

Register for our Color Management Seminar!

Product Overview | Product Details | Item Includes | Colormetric Data

$66.00 Shipping Wt. = 0.5 lbs

back to Gretag Macbeth index

Overview [top]

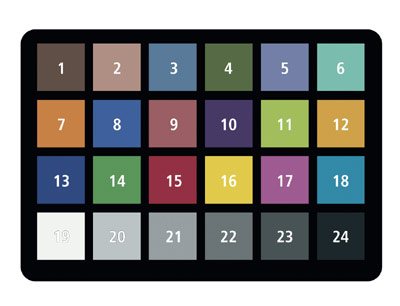

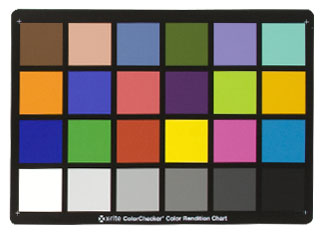

The ColorChecker is a checkerboard array of 24 scientifically prepared colored squares in a wide range of colors. Many of these squares represent natural objects of special interest, such as human skin, foliage and blue sky. These squares are not only the same color as their counterparts, but also reflect light the same way in all parts of the visible spectrum. Because of this unique feature, the squares will match the colors of natural objects under any illumination and with any color reproduction process.



The ColorChecker provides a totally non-subjective standard of comparison to help determine the true color balance of any color rendition system. It provides the needed standard for comparing, measuring and analyzing differences in color reproduction in various processes, thereby avoiding costly mistakes.



Some of its applications include:

>      Photography: Check films, lights, filters and paper.

>      Graphic Arts: Check any printing or proofing process.

>      Electronic Publishing: Check scanners, monitors and proofing devices.

>    Television: Check cameras, monitors, lights and film.



Product Details [top]

Application: Reproduce true-to-life colors under any illumination with any medium.



Size: 8.5 x 11 in. (21.59 x 27.94 cm)



Number of Colors: 24



Description of Colors: white, black, 4 neutral grays, blue, green, red, yellow, magenta, cyan, orange, purplish blue, moderate red, purple, yellow green and orange yellow, dark skin, light skin, blue sky, foliage, blue flower and bluish green.



Depending on use, it is recommended that you replace your ColorChecker chart every two years to ensure correct color identification.





The ColorChecker includes [top]

>      ColorChecker Color Chart

>      Protective Sleeve

>    Instruction Sheet

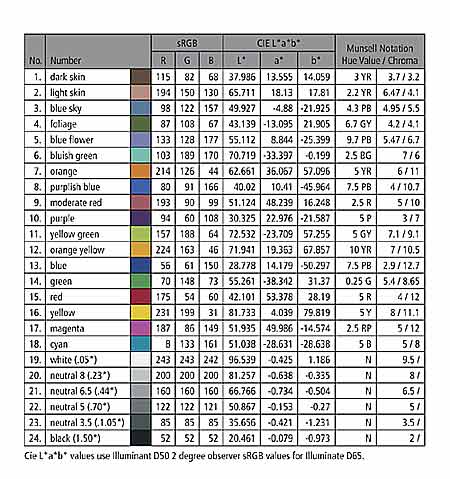

ColorChecker Colormetric Data [top]

The data below is intended to be an average measurement of all ColorChecker Charts. ColorChecker Charts should be replaced every two years as fading of the colors will alter the values of the chart.
